Detalhes do produto
Place of Origin: CHINA
Marca: YM
Certificação: High-tech Enterprise Certificate
Model Number: 700W UV Curing Lamp
Termos do pagamento & do transporte
Minimum Order Quantity: Negotiate
Preço: Negotiate
Packaging Details: Carton
Delivery Time: 10-15 Work days
Payment Terms: T/T
Supply Ability: 10000
Type: |
UV Curing Lamp |
Power: |
700W |
Size: |
120mm*100mm |
Luminous Size: |
80mm*60mm |
Curing Time: |
2-3s |
Wavelength: |
365nm, 385nm, 395nm, 405nm |
Cooling Mode: |
water cooling |
Application: |
Printing, Coating, UV ink |
Encapsulation Process: |
High Temperature Quartz Lens Package |
Emitting Color: |
UV |
Voltage: |
110V-220V |
Control Mode: |
Manual, Automatic |
Led power: |
3W each led |
Feature: |
High quality water cooling system |
Diode Type: |
3535 smd type |
Curing Speed: |
2-3s/time |
Light Source: |
UV LED |
Type: |
UV Curing Lamp |
Power: |
700W |
Size: |
120mm*100mm |
Luminous Size: |
80mm*60mm |
Curing Time: |
2-3s |
Wavelength: |
365nm, 385nm, 395nm, 405nm |
Cooling Mode: |
water cooling |
Application: |
Printing, Coating, UV ink |
Encapsulation Process: |
High Temperature Quartz Lens Package |
Emitting Color: |
UV |
Voltage: |
110V-220V |
Control Mode: |
Manual, Automatic |
Led power: |
3W each led |
Feature: |
High quality water cooling system |
Diode Type: |
3535 smd type |
Curing Speed: |
2-3s/time |
Light Source: |
UV LED |

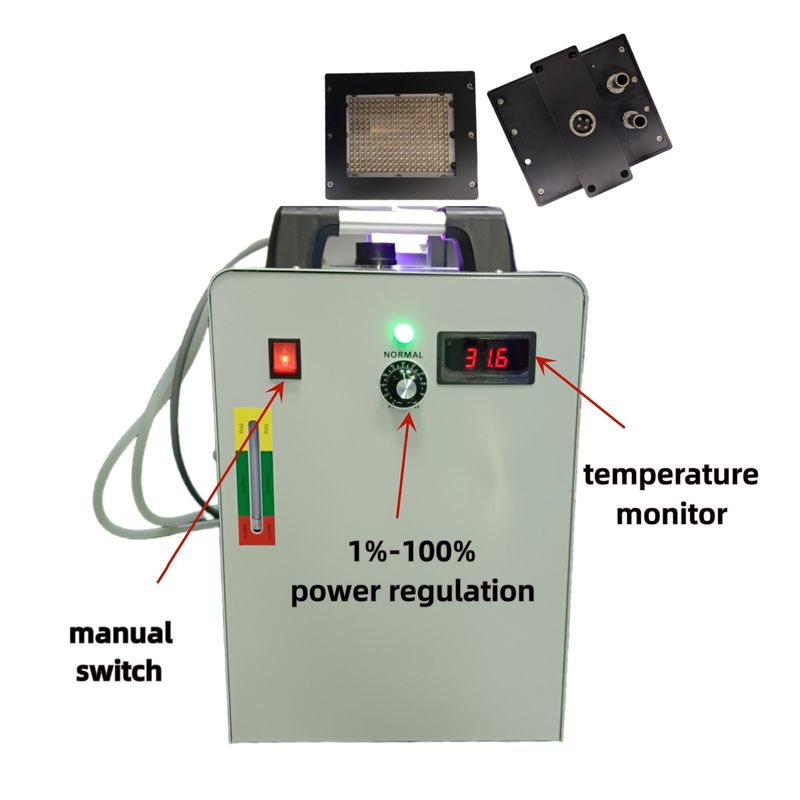

700W Water Cooled UV Curing System Features
1. Long-life: The service life is more than 10 times that of traditional mercury lamp curing machines, about 10000 hours.
2. Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet,
stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
3. Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up
time which leads faster operation with high productivity.
4. Clean-up time practically disappears, adding to the time available for production
5. UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
Specification of UV LED Curing System
| Item | UV LED Curing System 700W for printing |
| Power | 700W |
| Color | UV |
| Diode type | 3535 smd type |
| Size | 120mm*100mm |
| Luminous Size | 80mm*60mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Cooling scheme | Water-cooled |
| Application | Apply in various printing industries, painting, and glue. |
| optional | Single lamp, lamp + power supply, lamp + power supply + water Chiller |
| Lifespan (hours) | 15000 hours |
| Warranty | 1 year |
| Place of Origin | Shenzhen, Guangdong, China |
Q1. Can all the products be customized?
A: We are the factory of making UV lamp,UV accessories. All the our products can be made by the details you provide.
Q2. What is the outer package of the product?
A: carton packing or wooden packing.
Q3. Processing cycle?
A: Some of products we have in stock. Usually need about 3-15days to maked.
Q4: What's your warranty?
With over 10 years of experience in manufacturing the LED equipment, we're fully confident about our quality.
All of the products will be tested before shipment. and have 1 year warranty.
Q5: Is it OK to print my logo on UV LED curing system?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6.What certificates you have?what is the life time of the UV lamps
A: CE,RoHS,SGS authentication already passed,each lamp with life more than 10000hrs.
Q7: Why choose us?
1) We provide factory-direct prices.
2) We have our own R&D team, the products can be customized according to your requirements.
3) We provide superior and timely pre-sales advice and after-sales service.
4) W provide service door to door (China to your warehouse), much easy transaction.
